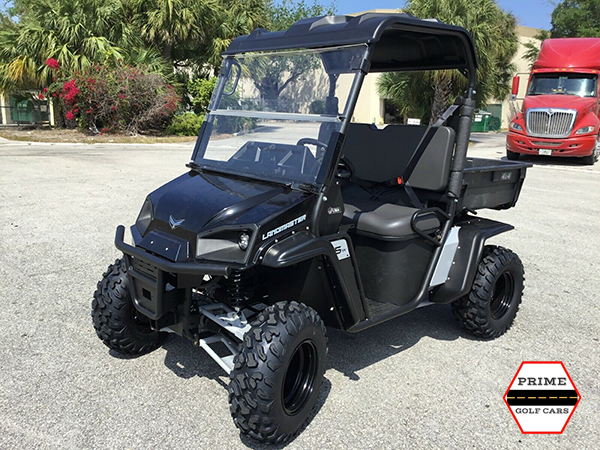

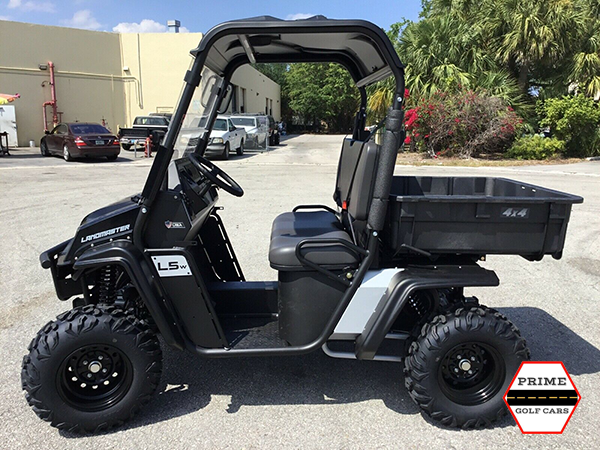

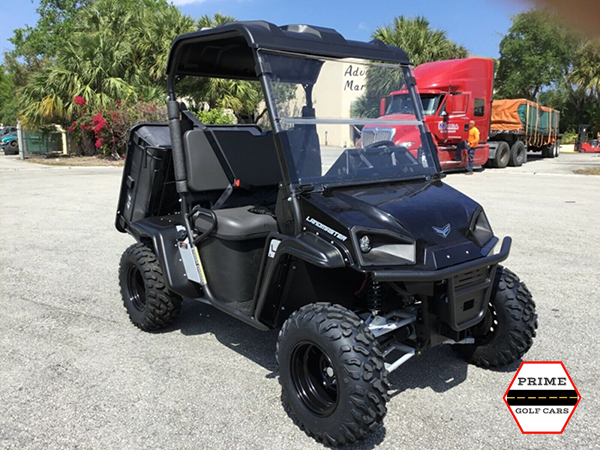

Built with 30+ new features in safety, reliability, performance, and design, the American Landmaster L5W is capable of traveling over aggressive bumps, hills, and uneven terrain without compromising the ride experience. Fully loaded or unloaded, you’ll experience a smooth ride and drive experience thanks to our best-in-class LROSS suspension system and dual rate shocks. Plowing snow, hauling timber, dumping stone, transporting others, and towing trailers or other implements is now easier than ever with the American Landmaster L5W. With an all new easy to use, weather-sealed, plug ‘n’ play electrical system, you can quickly add the accessories you need to fit your application and tasks.
SPECIFICATIONS
POWER
16hp | 479cc VANGUARD 4-stroke pressure lubricated OHV V-Twin with oil pressure warning light
SPEED
Up to 24 mph
FUEL CONSUMPTION
Up to 18 mpg
RANGE
Up to 100 miles
STARTING
12V keyed ignition with recoil backup
BATTERY
12V / 360 cca utility class
SPARK PLUG
NGK C7HSA
FUEL CAPACITY
5.0 gal
ALTERNATOR
20 amp
TRANSMISSION
CVT automatic
TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle
DIFFERENTIAL
Cable Actuated Rear-Locking
DRIVE
Switch engaged on demand, 4 wheel drive

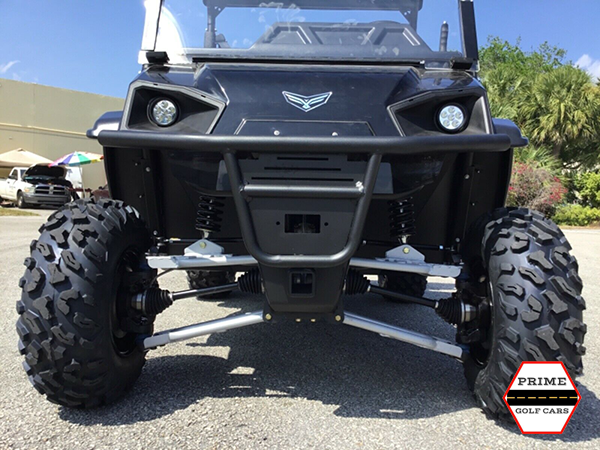

FRONT SUSPENSION
Double A-arms, adjustable coil over shock with up to 7″ travel

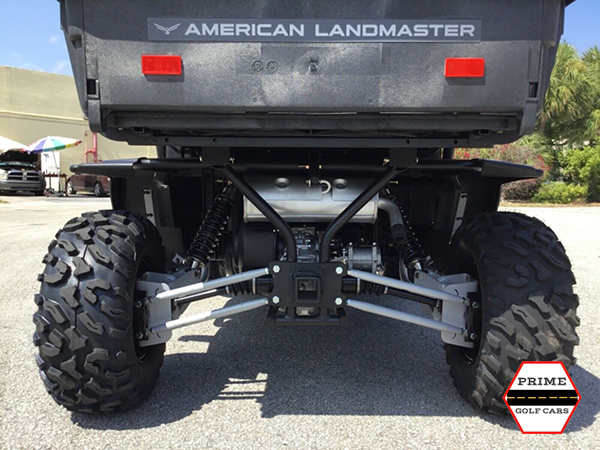

REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8″ of travel
BRAKE SYSTEM
4 wheel disk, hydraulic brake. Trans-axle mounted rotor with mechanical caliper parking brake with indicator light.
TIRES
25 x 8 – 12 (front) 25 x 10 – 12 (rear)
DIMENSIONS
95” L x 59” W x 76” H
WHEEL BASE
73”
TURNING RADIUS
12’ inside radius
CURB WEIGHT
1200 lbs.

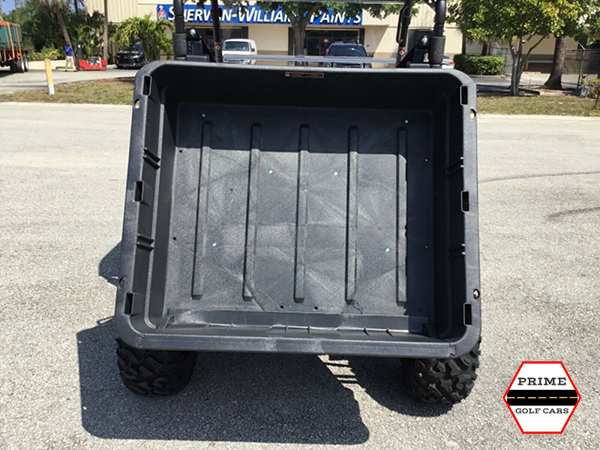

BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
GROUND CLEARANCE
11″
BED CAPACITY
Poly – 9 cu.ft. / Steel – 11 cu.ft. / L-ROSS – 500 lbs. / HD L-ROSS – 700 lbs.
TOWING CAPACITY
1500 lbs.
TOTAL PAYLOAD
L-ROSS – 900 lbs. / HD L-ROSS – 1,100 lbs.
WARRANTY
3 year engine / All other 1 year limited
ADDITIONAL FEATURES
- 3pt lap/shoulder belts for driver and passenger
- Twin 12V auxiliary outlets for accessories
- 12V/18W LED headlights
- Polyurethane powder paint
- 2” front and rear receiver hitch
- Poly dump bed standard
- Bench seating
- Welded steel frame
- Complete weather-sealed wiring connections
- Wide selection of additional accessories available along with three bed options
- Fuel gauge located underside of bed
- In-dash, hour/volt meter standard
